FEMAG/HEM

The FEMAG/HEM software is dedicated to simulate Sapphire Growth by Heat Exchange Method.
The FEMAG/HEM software provides you with the following:
.Temperature in the sapphire and in all furnace components
.Flow velocity in the sapphire liquid phase
.Crystallization front shape
.Advanced radiation heat transfer in the sapphire
.Thermal stresses (A-axis, C-axis)



Sapphire growth by HEM

femaghem01

Global Temperature in the furnace

femaghem02 femaghem03

 Melt convection: view and detail

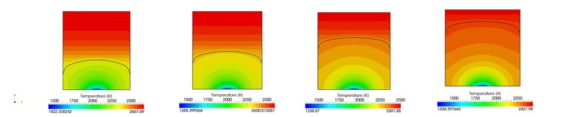

Temperature distribution in the crystal and melt for different times

femaghem04

femaghem05

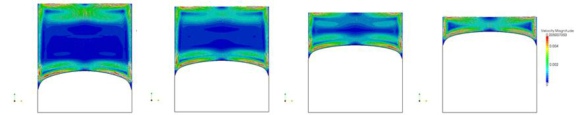

Velocity amplitude distribution in the melt for different times



FEMAG/HEM quasi-steady simulation of the growth of a Sapphire crystal: 3D von Mises invariant isovalues (Pa)

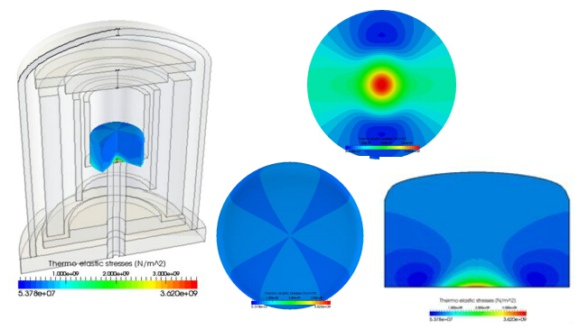

Anisotropic Thermal Stress (HEM Sapphire A-axis)

femaghem06

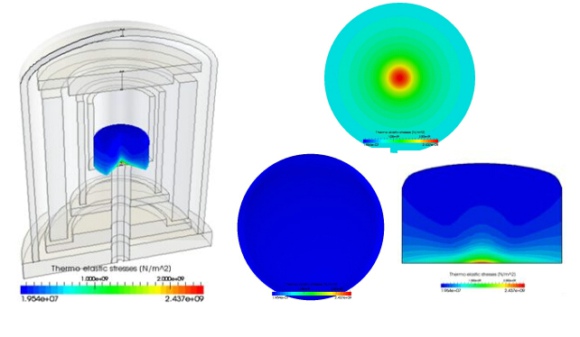

Anisotropic Thermal Stress (HEM Sapphire C-axis)

femaghem07
