FEMAG/DS

The FEMAG/DS software is dedicated to the simulation of the Directional Solidification (DS) process except the HEM,VB and VGF processes.

The FEMAG/DS software is used to design new hot zones and recipes taking into account specific business and technical issues, such as:
.Outstanding rapid 3D ingot DS process simulation
.Calculation of 3D Steady and Unsteady heat transfer, melt convection, Marangoni effect
.Radiative heat exchanges between all components
.3D crystallization front shape
.3D calculation of diffusion and transport of species (oxygen and carbon) in the melt and crystal
.Intuitive GUI for modeling, monitoring and result analysis
.Extensive material database
.Accurate calculation of the effect of heaters, shields and other components of the furnace
.Direct or Inverse calculations
.Choice of different cooling modes: moving or fixed heaters, time dependent heater imposed temperature
.Mono-casting simulation
.Fully automatic coupled computation



femagds01

Production Environment



femagds02

Cost Effective virtual production environment



femagds03

FEMAG/DS is highly efficient when compared to Cartesian Approach



femagds04



Species Concentration

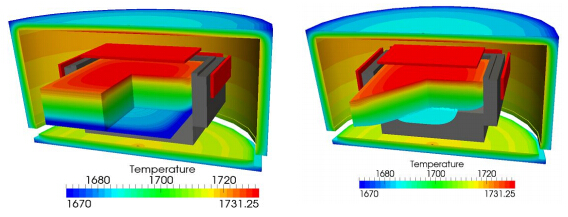

femagds05

Mono Casting in DS
